PV Mounting Structure
Hot-dip galvanised steel structures for ground-mounted arrays: fixed-tilt frames and single-axis trackers, sized to the project's wind and snow loads.
- System
- Fixed tilt / tracker
- Material
- Galvanised steel
- Tilt
- 10–30° / ±60°
Certificates and test reports are shared for the specific model and destination market.
Key Features
Sized from real loads
Posts, rails and foundations are calculated from the site's wind and snow load instead of a catalogue default.
Single-axis tracking

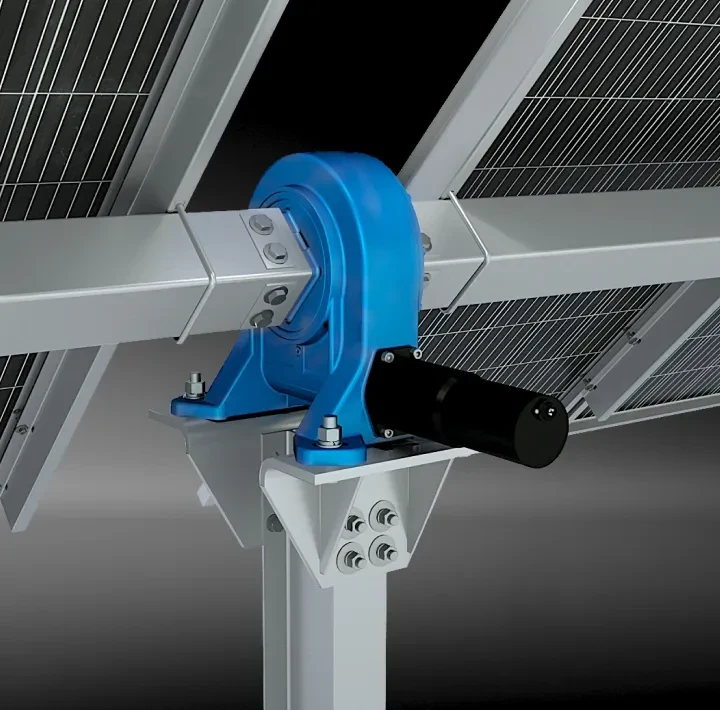

The slewing drive turns the array east to west through the day, lifting yield on sites with strong direct irradiance.
Pre-cut shipping kits
Rails are cut to length, hardware is bagged per array and drawings are numbered to match the shipment.
Technical Specifications
Values are typical for the standard configuration. Confirm the order datasheet for guaranteed figures.
| Parameter | Value |
|---|---|
| Structure | Fixed tilt / single-axis tracker |
| Steel grade | Q235B / Q355B |
| Corrosion | Hot-dip galvanised, 80 µm |
| Foundation | Driven pile or concrete |
| Wind resistance | Up to 50 m/s |
| Design life | 25 years |
System Topology
A typical arrangement for this product line. The final single-line diagram is issued for each project.
Application Scenarios
Ground-mounted arrays
Fixed-tilt rows for utility and commercial sites, from a few hundred kW to multi-megawatt phases.
High-irradiance sites
Trackers suit open sites with strong direct irradiance and a stable grid connection.
Roof and carport frames
Rail and clamp sets matched to metal roofs and canopy structures, delivered with the modules.
Product Photos
Frequently Asked Questions
From the geotechnical report: driven piles on competent soil, concrete pads or ballast where ground penetration is restricted.
PV Mounting Structure
Datasheet, certificates and a sizing sheet for your site.
